Screen Printed Electrode (SPE)

Type:  Product
IPR Status:  Others
Secured In:  India
Application/uses:
  • A novel disposable electrochemical sensor is designed and developed using screen printing technique for possible applications in chemical, biological and environmental species detection.
  • Electrolysis, detection of redox, chemical and biomolecular detection with electrode surface modification

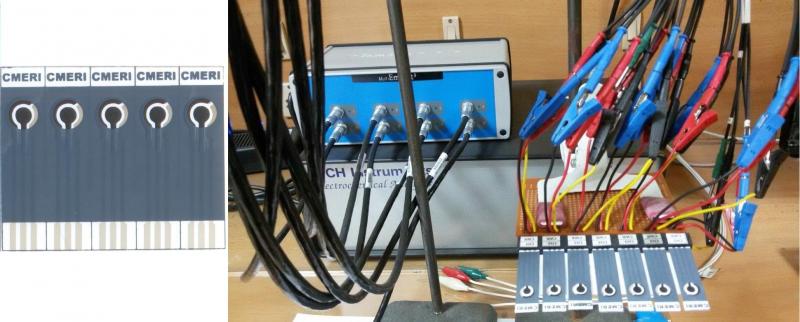

  • The electrodes were screen-printed on a non-tearable, flexible polyester film using commercially available inks and characterized by cyclic voltammetry in different redox probe.
  • Extremely useful in various R & D organizations and universities for developing electrochemical sensors for a specific analyze detection.
Salient Technical Competing Features:



  • The electrode is developed using a flexible polyester film substrate support material to make a highly sensitive electromechanical sensor.
  • It is an indigenously developed, easy to fabricate, low cost electrode in comparison to commercially available expensive imported electrode.
  • Experimental results are reliable and stable
  • Wide scope of contribution to the other relevant supported projects like “MEMS based immune sensor for the determination of antigen”.
Status of Commercialization:  Under Process
Techno Economic:  Available on enquiry basis.
