Mechanized Drain Cleaning System

Type:  Product
IPR Status:  Others
Secured In:  India
Application/uses:

This system is to replace the manual work in drainage cleaning by mechanized system. Drainage pipes are using for the disposal and unfortunately sometimes there may be loss of human life while cleaning the blockages in the drainage pipes. To overcome this problem and to save human life we implement a design “Mechanized Drain Cleaning System”. We developed our project to use this in efficient way to control the disposal of wastages and with regular filtration of wastages and monitor the disposal in frequent manner. It is used almost in all types if Drainage (Large, Small & medium).



Operational Methodolog:

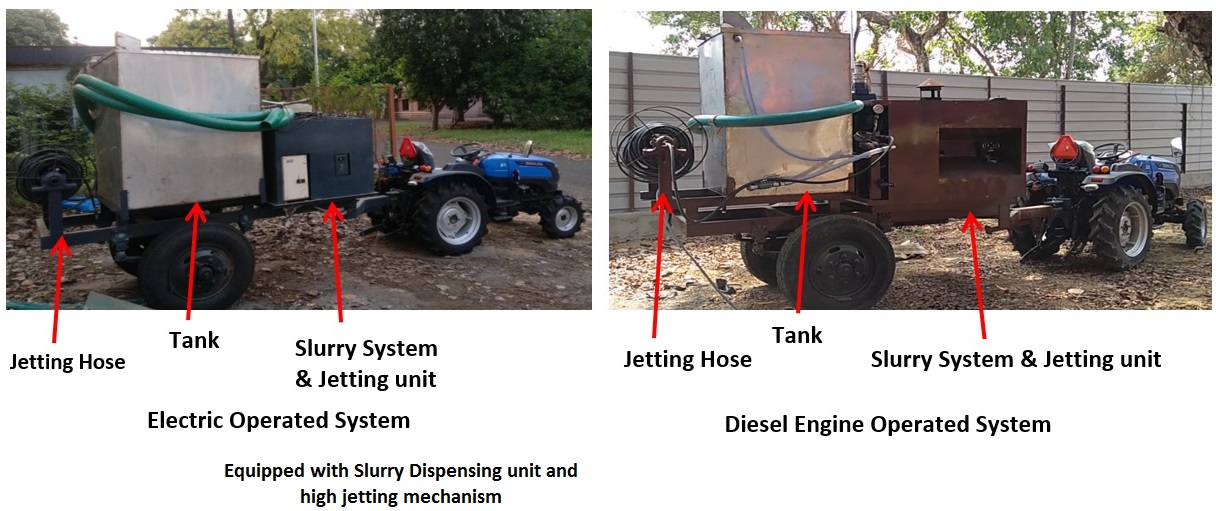

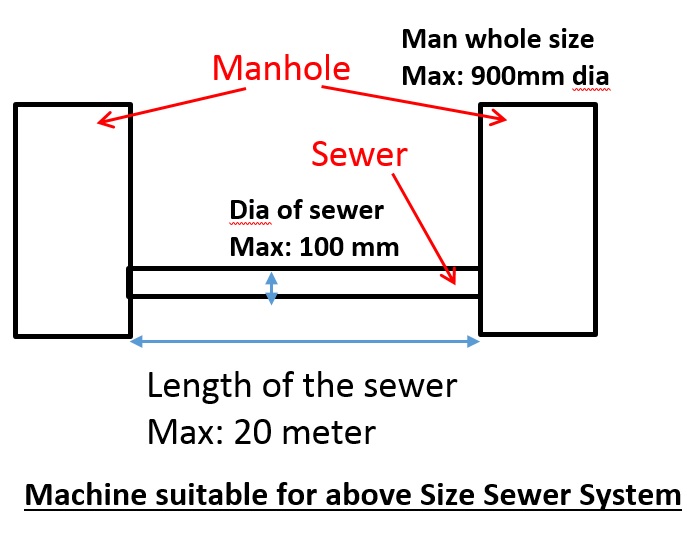

Model - 1: Drain/Sewer Cleaning System for narrow lanes and small dwellings (within 500)
























































Key Features:

  1. Two variants – Electric & Diesel Engine operated
  2. Suitable for narrow lane upto 1.2meter width.
  3. Compact, reliable & easy to operate.
  4. Developed as tractor attachment which reduces the cost

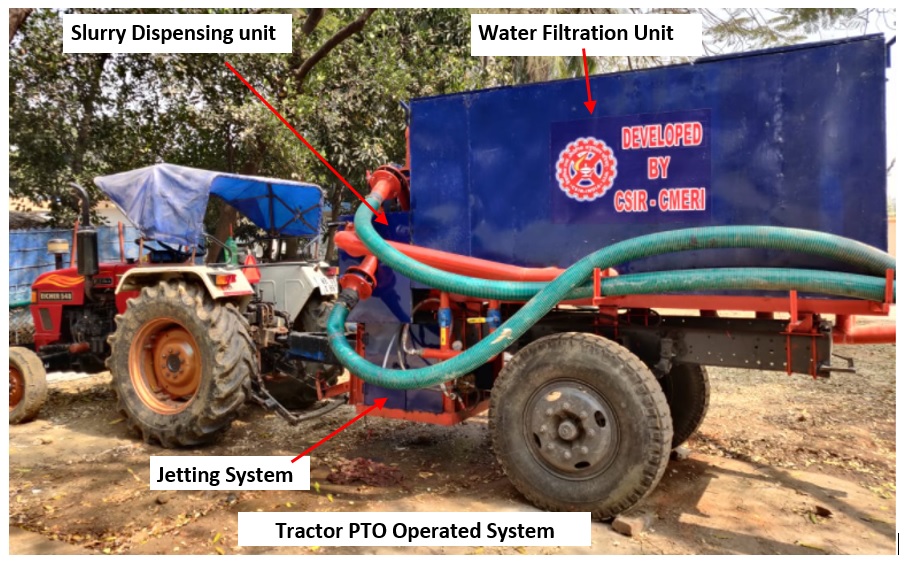

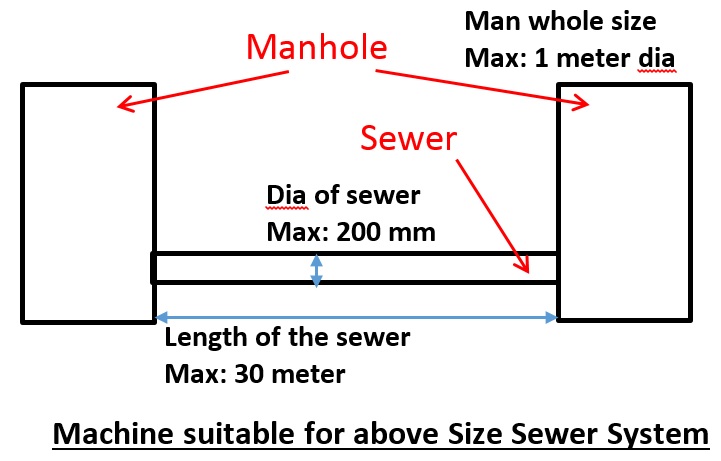

Model - 2: Drain/Sewer Cleaning System for residential complexes, townships and Gram Panchayats etc. (within 1000-2000 people)

















































Key features:
  1. Slurry will be sucked from the chocked manhole and pass through the mechanical filter.
  2. Mechanical Filter water will be use for the jetting.
  3. Compact, reliable & easy to operate.
  4. Developed as tractor attachment which reduces the cost

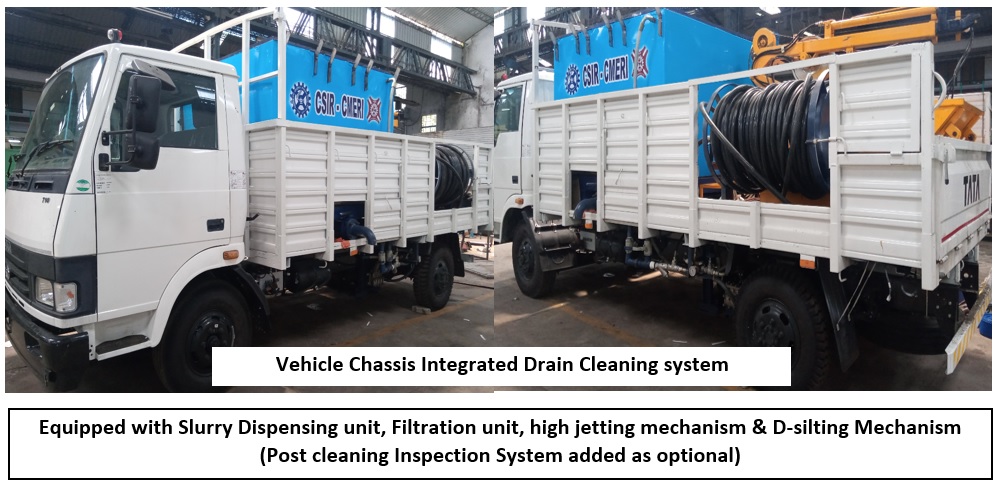

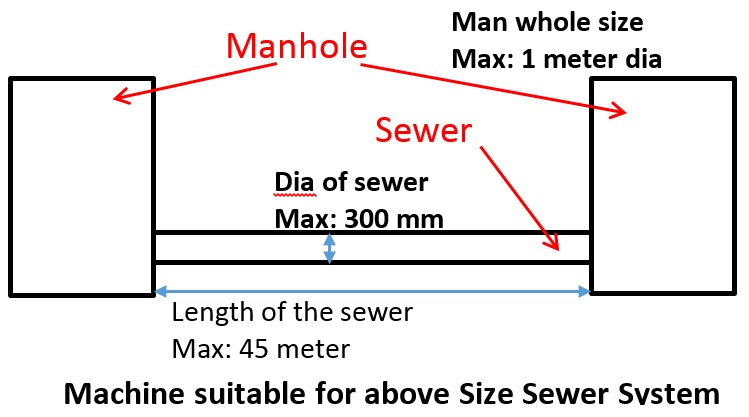

Model - 3: Vehicle mounted Integrated Drain/Sewer Cleaning system for urban and local Bodies (within 2000-5000 people)

















































Key features:
  1. Vehicle Mounted, Engine PTO Operated System, pneumatically operated modules. Slurry will be sucked from the chocked manhole and pass through the mechanical filter.
  2. Mechanical Filter water will be use for the jetting.
  3. Reliable & easy to operate.
  4. Developed in BS VI chassis (Green and Clean India)

Status of Commercialization:  Ready for Technology Transfer
Major Raw Materials To Be Utilized :  Slurry Pump, Hydraulic grab bucket, Robot for Inspection of Chockage (optional), High pressure water jet.
Techno Economic:  Available on enquiry basis
Technology Package:  Complete Manufacturing Drawings & Technology Knowhow & Operation Manual (Working prototype is with CMERI)
TRL:  TRL 6
