Type:
Product
IPR Status:
Patent
Secured In:
India
Application/uses:

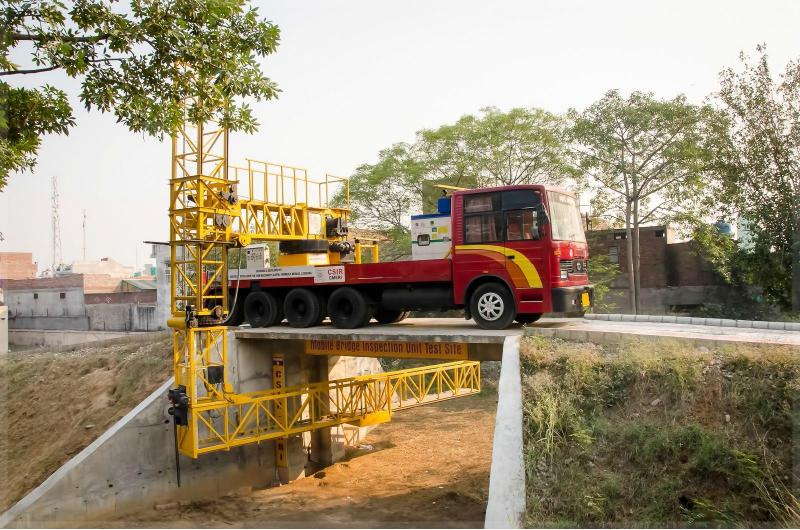

Device for the inspection of the Road bridges.
Salient Technical Competing Features:
- Simple & Robust articulated steel structure unit mounted over 25-ton TATA truck chassis with modified suspension system and additional rear axles.
- MBIU can be easily operated / maintained by semi-skilled manpower.
- PLC controlled electric drives for all six joints. Operating safety embedded in the PLC controller for adequate safety.
- Special electrical geared drive to maneuver the inspection vehicle forward / rearwards for continuous inspection between pillars without unfolding the unit.
- Dedicated power supply system (15KVA, 3 Phase) to power MBIU for remote area inspection.
- Online chassis load sensors for sensing structural load distribution during structure folding / unfolding & inspection.
- Online Wind speed monitor.
- Touch screen based twin control units for MBIU structure folding / Unfolding.
- Integrated parking assistant system at MBIU drivers cabin.
Environmental Consideration:
Device can be operated in normal outdoor whether conditions (Up to 45 Km/hr. Wind speeds)
Status of Commercialization:
Technology is ready for Commercialization
Techno Economic:
Available on enquiry basis.
Content Details:
IPR Details :
PATENT NO : 2984DEL2012 TITLE : VEHICLE MOUNTED AUTOMATIC CONTROLLED MOBILE BRIDGE INSPECTION DEVICE
Level/Scale of Development:
Prototype developed & demonstrated
