Outdoor Air Purifying System

View the full image

Outdoor Air Purifying System

Type: Process

IPR Status: Patent

Secured In: India

Application/uses:

Removes pollutants, like, PM 2.5, PM 10, VOCs and dust particles upto 70%. Cost-effective and efficient in-house activated carbon filters for the removal of dust particles, VOCs and odour.

Salient Technical Competing Features:

Model 1: 2 Fans, 1 Filter set, Power required: 90 W.

Model 2: 1 Fan, 1 Filter set, Power required: 45 W.

Model 3: Annular in shape; 4 Fans; 4 Filter sets; 4 directional cleaning; Power required: 180 W.

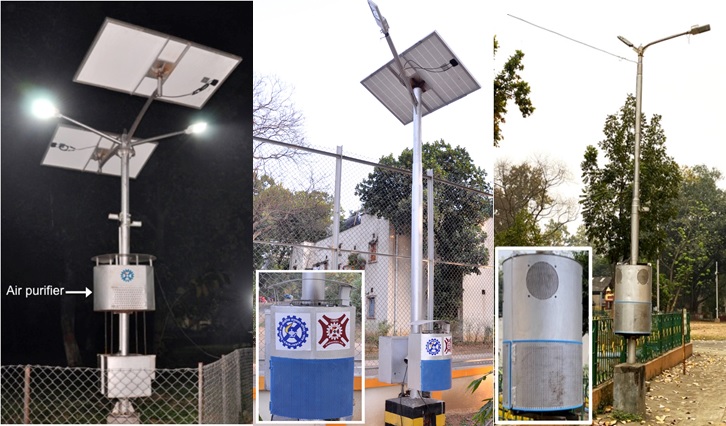

All models are attachable with street lamp pole (may/may not be solar powered).

Low cost In-house activated carbon filter as a replacement of commercial pre-filter and activated carbon filter. Target area for cleaning: 500 m².

Environmental Consideration:

Green Energy

Status of Commercialization: Ready for commercialization

Major Raw Materials To Be Utilized : Air

Major Equipments: Fans, Filters

Technology Package: Design, Technical specifications and Manual

Content Details:

Patent filed (Model 3); Copyright (Model 1 and 2, under preparation)

TRL:

TRL 6
